The TuffTech Aluminium Lower Trench Shield (TT-100) has been engineered as a lightweight, high-capacity solution for extra demanding excavation work. Built from high strength aluminium, it combines strength & durability with portability to deliver premium site performance while maintaining practical value.
Designed for an extensive range of projects, the TuffTech Aluminium Lower Shield (TT-100) combines strength with less system weight to make transport and positioning more manageable on site.
It can be used as a standalone trench shield or paired with the compatible TT-100 Upper Shield where additional protection height is required, giving contractors greater flexibility across changing excavation requirements.
Code Compliance: British and European Standards BS. EN 13331.1 & EN13331.2, Australia & New Zealand Standards AS 4744.1:2025
High-strength aluminium construction delivers strong, durable trench protection at a significantly lower overall weight relative to other materials. This helps streamline transport and handling while still providing the strength and capacity required for tough work conditions.
A fully sealed working face creates a solid barrier between the excavation and the work area. The robust panel construction is designed for reliable performance across repeated site use, letting you maintain a practical and dependable trenching setup for multiple projects.
Twin extraction hook points provide a combined 42-tonne extraction capacity, giving crews a robust connection point when removing or repositioning the shield.
The TT-100 system is designed for straightforward assembly, helping reduce setup complexity on site.
A cutting edge on the lower panels helps the shield move more effectively and efficiently into position during installation.
An optional leading-edge cutting configuration can improve drag-box performance where the shield needs to advance through the trench as work continues. This provides added flexibility for specific working methods and site conditions.
| Height meter H |
Length meter L |
Weight kg m |
Rated Capacity kPa p |
|---|---|---|---|
| 2.4 | 4.0 | 1611 | 88 |
| 5.0 | 1871 | 70 | |
| 6.0 | 2131 | 48 | |
| 7.0 | 2391 | 35 |

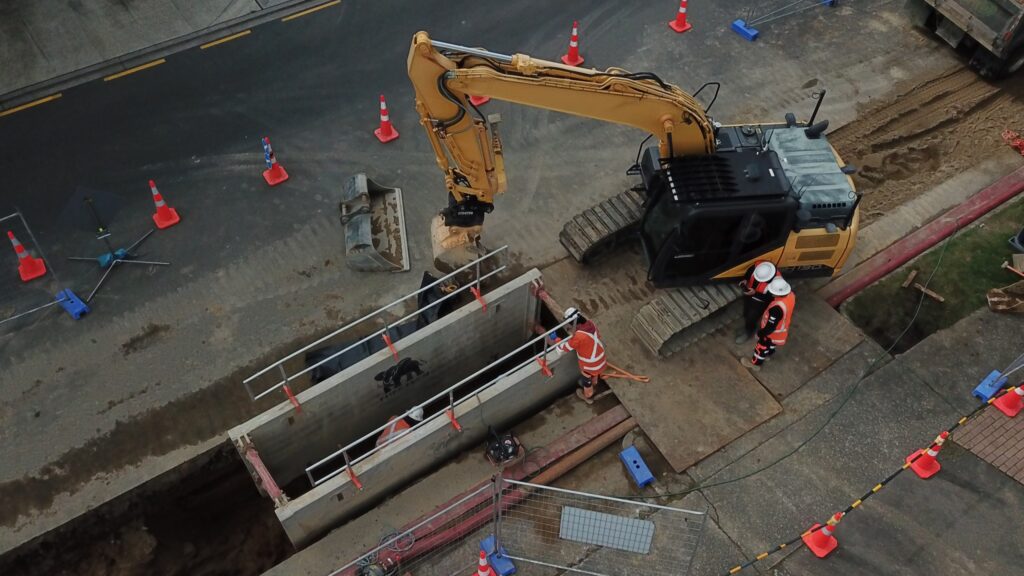

TuffTech trench shields supported open-trench stormwater installation within a constrained urban road corridor. The shield system helped the team manage groundwater, traffic interfaces, existing services and limited space for construction plant and materials.
What are the benefits of an aluminium trench shield?
Can the TT-100 Aluminium Upper and Lower Shields be used separately?
What types of projects are TT-100 aluminium shields suited to?
Do the TuffTech aluminium trench shields suit different trench widths?
Are TT-100 aluminium shields easy to move?
Can TT-100 shields be stacked for deeper excavations?
